These UniSET floatation and drying workstations are newly developed, come with a similar design concept of modularizing and combing both functions of slide dryer and water bath in one smart unit, significantly help simplify laboratory workflows and save limited space on laboratory work benches. Supply of different UniSET workstation models deliver diversified solutions for meeting up with varied user preferences/demands, optimally enabling operational experience and experimental results.

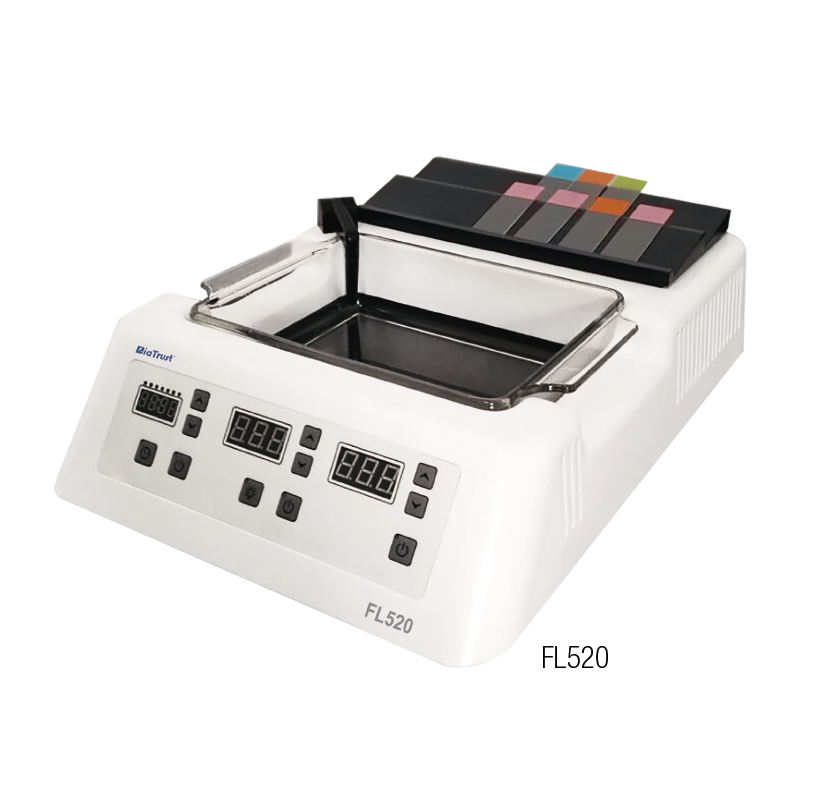

F520 additionally features enclosed music playing function, accepts TF card, USB and earphone.

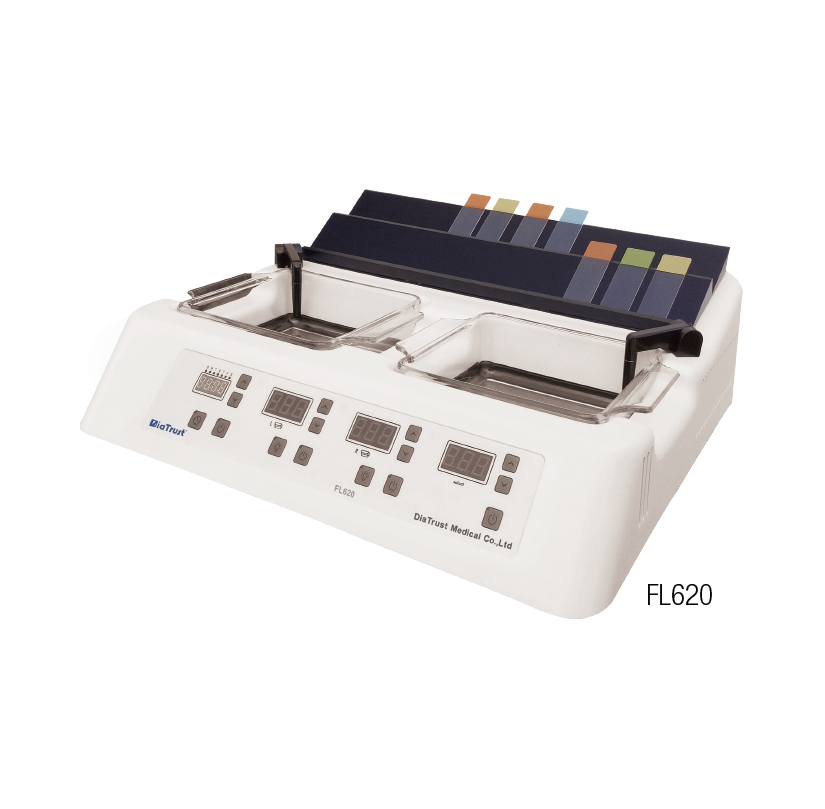

F620 additionally features enclosed music playing function, accepts TF card, USB and earphone. Possessing two separate water baths, F620 allows two separate processing at a same time.
Model Number | FL320 | FL520 | FL620 |
Product Number | FL320-000 | FL520-000 | FL620-000 |
Instrument Dim. (L×W×H) | 410mm×510mm×150mm | 460mm×310mm×135mm | 475mm×460mm×175mm |
Dim. of Bath Dish (L×W×H) | 350mm×220mm×45mm | 210mm×170mm×65mm | 155mm×155mm×55mm |
Dim. of Drying Plate (L×W) | 330mm×90mm | 250mm×108mm | 405mm×130mm |
Capacity of Drying Plate | 26 slides | 20 slides | 32 slides |
Working Voltage | AC220V/110V±10%, 50Hz/60Hz | AC220V/110V±10%, 50Hz/60Hz | AC220V/110V±10%, 50Hz/60Hz |
Power Rating | 500W | 500W | 600W |
Net Weight | 9.0kgs | 6.0kgs | 10.0kgs |
Bath Temperature Set | Ambient-70℃ (±1℃) | Ambient-70℃ (±1℃) | Ambient-70℃ (±1℃) |
Hotplate Temperature Set | Ambient-100℃ (±1℃) | Ambient-100℃ (±1℃) | Ambient-100℃ (±1℃) |
