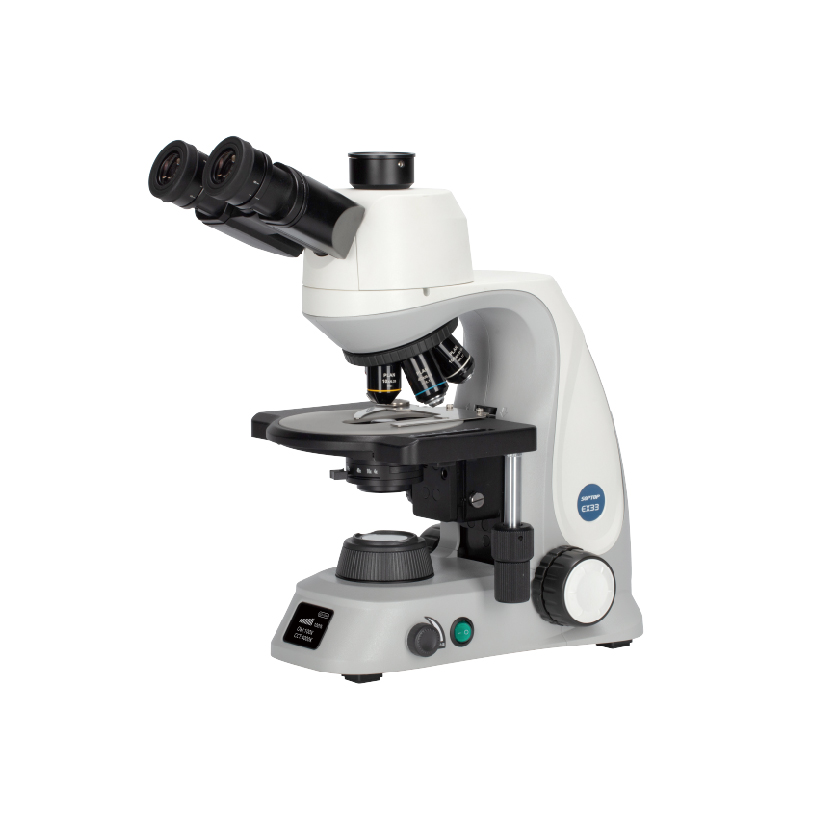

LuxSET Biological Microscope
本页链接二维码

Especially developed for a wide range of applications in education, research and clinical laboratories, the LuxSET biological microscopes XJ083 are equipped with outstanding optical system and complete accessories, enable a variety of observation options, such as light/dark field, phase contrast and etc. Integrated with intelligent illumination management system and ECO function, these biological microscopes deliver you more efficiency in laboratory workflows.

Share to :
TECHNICAL SPECIFICATION

    ●Standard Setting   ○Optional Setting


    Model Number

    XJ107

    XJ107N

    Viewing Head

    Sliding Binocular Head

    ●

    ●

    Sliding Trinocular Head

    ○

    ○

    Seidentopf Binocular Head

    ○

    ○

    Anti-mould

    ○

    ●

    Eyepiece

    WF10X

    ●

    ●

    P16X

    ○

    ○

    Nosepiece

    Quadruple Nosepiece

    ●

    ●

    Quintuple Nosepiece

    ○

    ○

    Objective

    Achromatic Objective 4X, 10X, 40X, 100X

    ●

    ●

    Stage

    Double-Layer Mechanical Stage 140×140mm / 75×50mm

    ●

    ●

    Condenser

    Abbe NA1.20 with Iris Diaphragm & Filter

    ●

    ●

    Focusing System

    Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke

    37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm

    ●

    ●

    Armrest

    Black Armrest

    ○

    ●

    Rubber Cover

    Rubber Cover for Focus Adjustment Knob

    ○

    ●

    Illumination

    S-LED Illumination, Brightness Adjustable

    ●

    ●

    Halogen Lamp 100V-240V/6V20W

    ○

    ○

    Plan-concave Mirror

    ●

    ●

    Packaging

    Styrofoam

    ●

    ●

    Carton

    ●

    ●

    Wooden Case

    ○

    ○
